The New RVG goes further to make sure your sensors last longer

Lift your performance by going digital. Digital technology is simply better. It’s faster, it’s easier, more precise and it greatly improves your patient interaction. And now it’s more affordable than ever.

RVG 5200 Digital Radiography System

What does durability mean to us? It is the length of time an RVG sensor will serve its intended function within the typical operating conditions of a dental practice. We ensure our RVG sensors meet our standards for durability through rigorous testing for overall robustness, cord flexibility and submersibility.

SUBMERSIBILITY TESTING We immerse RVG sensors in water for 24 hours to ensure they are airtight and watertight—both of which are essential for disinfection.

Safe, sound and superior All of the sensor’s elements work in perfect harmony to deliver the best image results, while its robust design ensures maximum durability and a long lifespan.

FLEXION TESTING We expect RVG sensors to withstand the equivalent of five years of use, which involves exposing the cable to tens of thousands of severe flexions at the back connection point on the sensor head.

FORCE TESTING To eliminate the need for a detachable cable, we test sensor cables for torsions using a 15-pound weight to simulate the pulling of the sensor from a connection point.

FOR OUR VERY PRICE FILL IN THIS QUICK FORM AND WE’LL GET RIGHT BACK TO YOU.

Affordable

Offering a number of user-defined image processing tools, the RVG 5200 allows you to customize images according to your own specifications for enhanced diagnosis and ease of use.

Three anatomical image enhancement modes can be applied to acquired images, including endodontic, periodontic, and dentin-enamel junction, and a user-friendly sharpness filter with dynamic slider bar makes it easy to see contrast changes in real time. Using sharpness ranging from 0 to 6, you can choose the image contrast you prefer.

Sophisticated, Yet Simple

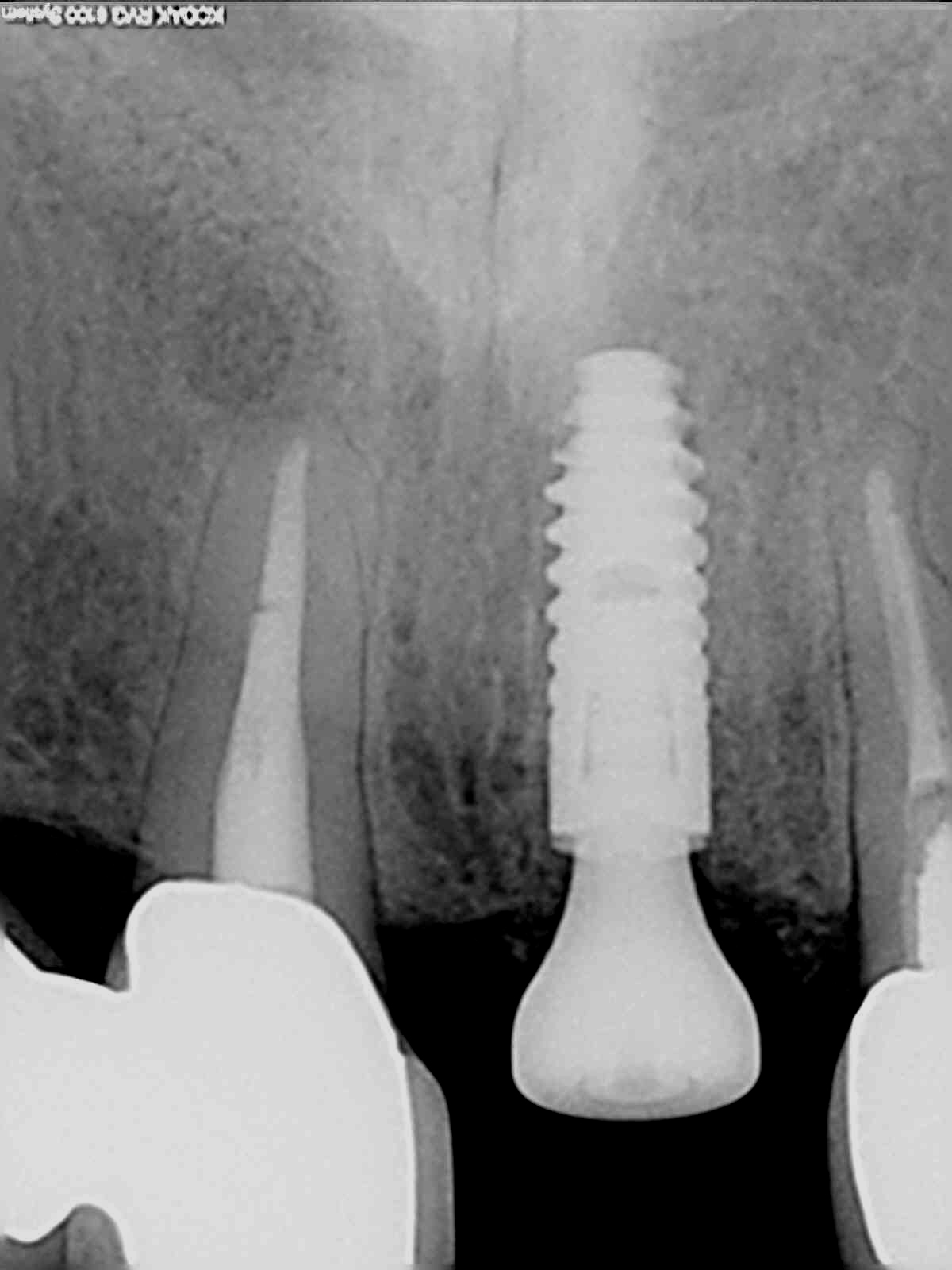

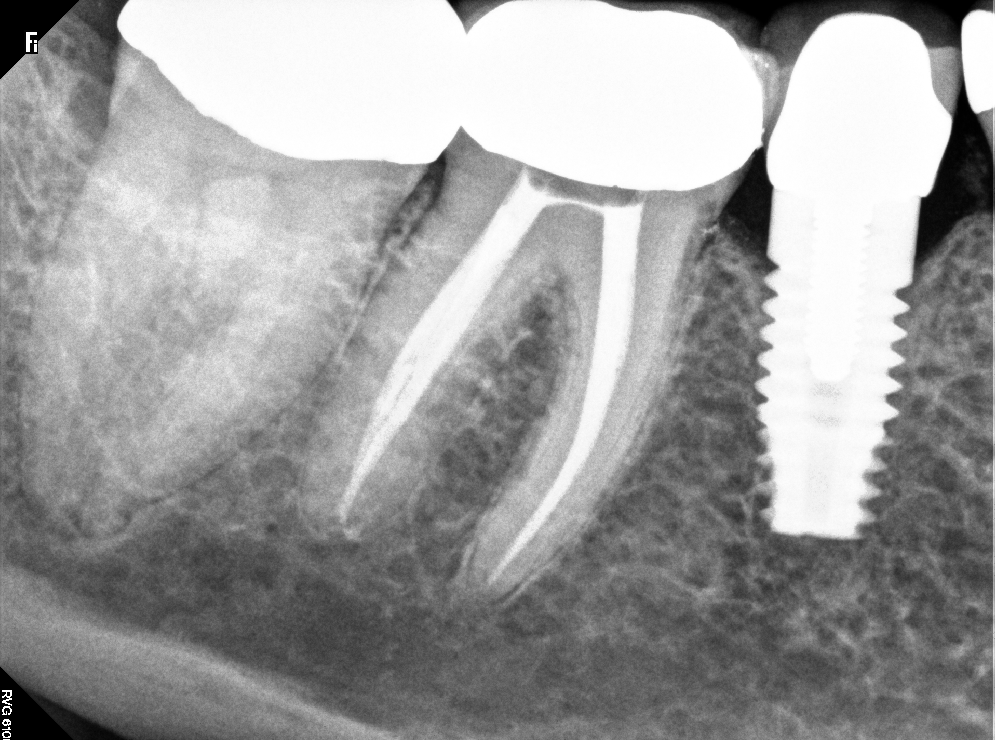

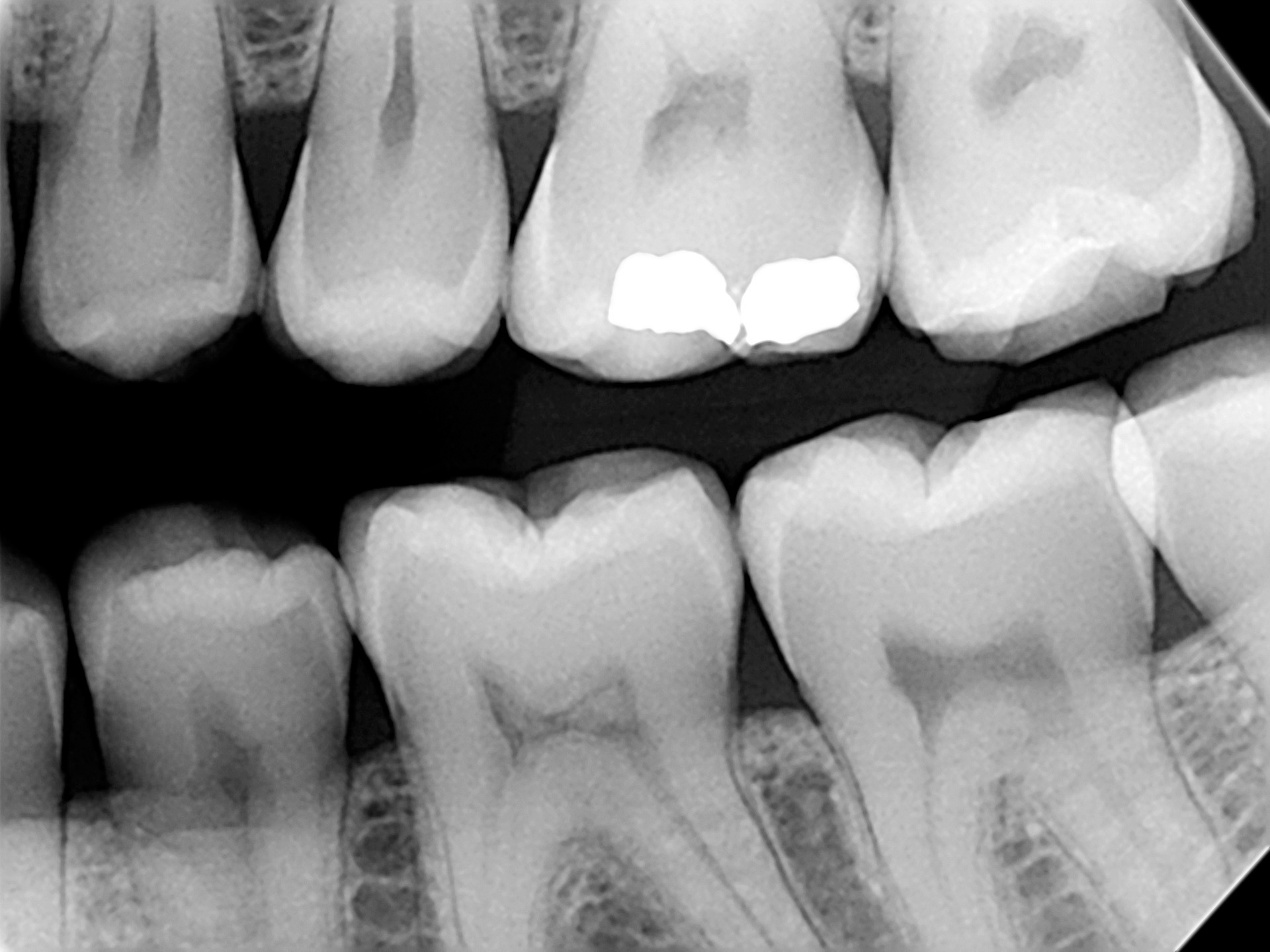

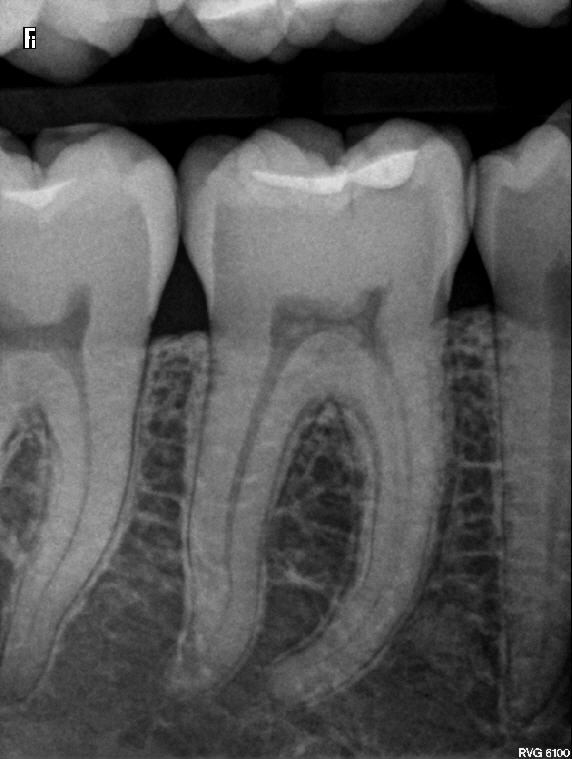

True resolution 16 lp/mm delivers dental radiography images of the same or higher quality than other intraoral sensors on the market.User-defined image processing tools allow users to establish their own default settings by using our pre-set tools or by defining their own.

Reliable

Tested for ten years of very intense use. A 50% reduction in the number of connection points improves cable durability.Shock resistant casing designed to resist shocks, bite and drops to ensure durability.Fully waterproof, supporting immersion in disinfecting solution for enhanced hygiene and safety.

RVG 5200 Technical Specification

Sensor Size 1 (PA)

Sensor Size 2 (Bite Wing)

True image resolution*
Pixel size
External dimensions
Dimensions of active area
Number of pixels
Sensor plate thickness
Purpose
Sensor
Connection

16 lp/mm
19 micrometers
27.6 x 37.7 mm
22.2 x 29.6 mm
1.82 million
7.3 mm
All-purpose sensor
CMOS with optical fibre technology
USB 2.0

True image resolution*
Pixel size
External dimensions
Dimensions of active area
Number of pixels
Sensor plate thickness
Purpose
Sensor
Connection

16 lp/mm
19 micrometers
32.2 x 44.2 mm
26.6 x 35.5 mm
2.63 million
7.3 mm
Bitewing examinations
CMOS with optical fiber technology
USB 2.0
